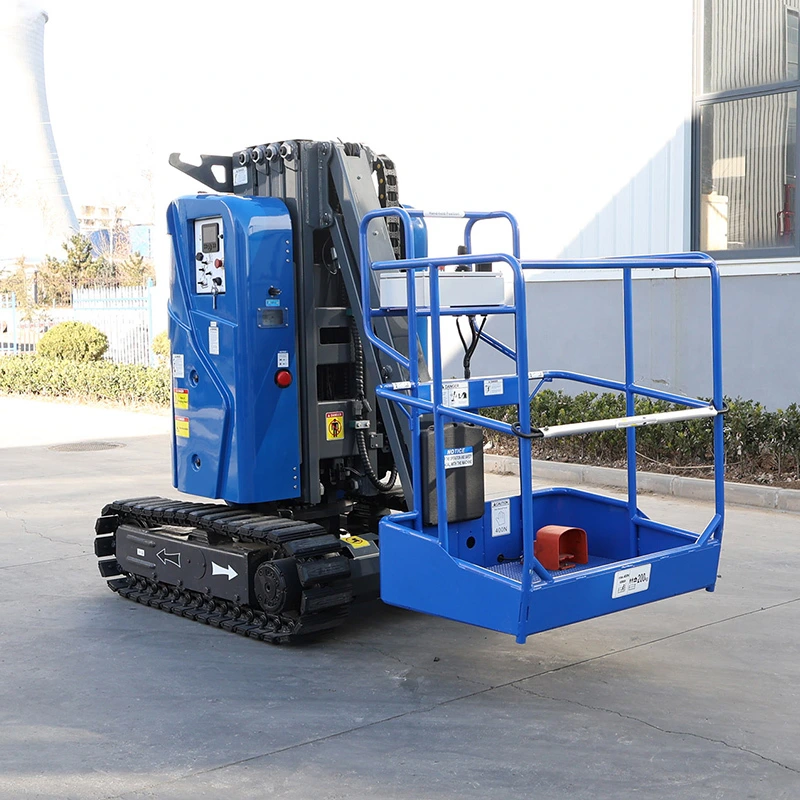

HYNEE Hi9C-Crawler Tracked Vertical Mast Lift wIth Jib
Product Advantages
1.3.51m outreach
Reach safely hard-to-reach spaces within the 3.51m outreach.
Skid steering crawler
It provide off road capabilities,highly increased the ability to go through holes,obstacles or rough terrain areas
Dual joysticks on platform control
Equipped with two joysticks, it provides class-leading run time.
Heavy duty forklift style mast
Heavy-duty forklift style mast technology provides unrivaled operating characteristics that combine strength, lift capacities, smooth operation and lifting speed.
220° turret rotation
Large working envelope and 356 deqrees of rotation helps users to be more productive
Easy maintenance
Cylinders could be removed without disassembling the mast,It is very easy to inspect the wear of the chain and detect chain tension without removing any parts which make it much faster and easier to maintain the machine.
Specifications
|
Model |
Hi9C |
||||||
|
Max. Working Height |
9.2m |
Max. Platform Height |
7.2m |
||||
|
Max.Horizontal Reach |
3.51m |
Loading capacity |
200kg |
||||
|
Occupants |
2 |
Platform Dimension |
0.8×0.93m |
||||
|
Overall Length |
2.75m |
Overall Width |
1.15m |
||||
|
Overall Height（stowed) |
1.98m |
Ground Clearance(Stowed) |
85mm |
||||
|
Ground Clearance(Raised) |
85mm |
Wheelbase |
1.15m |
||||
|
Turret Rotation |
220° |
Type |
2.3X0.9X0.92m |
||||
|
Travel Speed(Stowed) |
1.6km/h |
Travel Speed(Raised) |
0.9km/h |
||||
|
Max. Working Slope |
X-2°，Y-2° |
Driving Motor |
32V/4kw |
||||
|
Lifting Motor |
48V/3kw |
Battery |
48V/220Ah |
||||
|
Charger |
48V/35A |
Weight |
2800kg |
||||
Product Details
