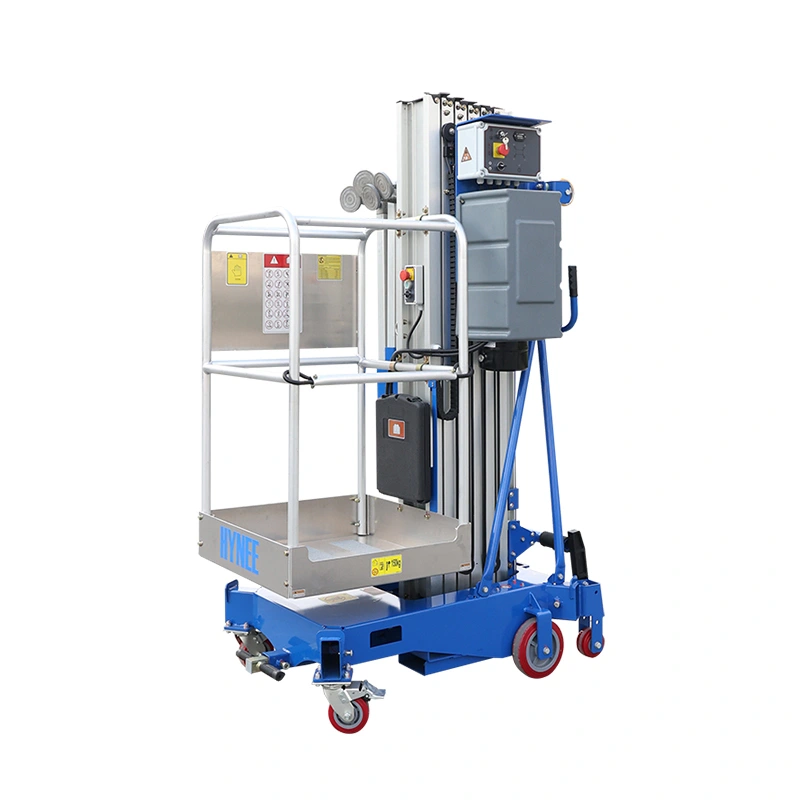

The GTWY1 Push Around Single Mast Self-Propelled Vertical Lift is a compact, highly maneuverable aerial work platform designed for efficient and safe access to elevated work areas. Perfect for indoor applications, the GTWY1 offers a unique combination of convenience, performance, and safety in a small package. With its simple push-around mobility and vertical reach capabilities, this lift is an ideal solution for maintenance, repair, and light construction tasks in tight spaces. combines a compact design, vertical lift capabilities, and ease of use to provide a perfect solution for light-duty indoor tasks that require elevated access.

Whether for maintenance, repairs, or stocking, the GTWY1 offers high performance, safety, and value in a user-friendly package. Platform height is from 5m-12m， it will be a model fit for you to work on Aerial platform work.

Inquiry

Write a Review

Product advantages

safety features

Outrigger interlocks are safety features on mobile equipment such as cranes, aerial work platforms, boom lifts and other machinery that require stable outriggers to operate safely. The interlock system ensures that the outriggers of the equipment are properly deployed and locked before the machine is operated, thus preventing dangerous situations when the equipment is used without adequate stability.

Improved Stability

The interlock system ensures that the machine cannot be used until it is in a safe, balanced position, thus improving the overall stability of the equipment during operation.

Reduced Operator Error

The system prevents operation unless the outriggers are set correctly, thus minimizing human error. This is especially important in high-risk work environments, such as construction sites, where operators may overlook or skip setting.

AC Power on Platform

This feature allows operators to use power tools, lighting, and other electrical equipment while working at height, without the need for additional cords or external power sources.

Specifications

Platform Dimension

Overall Dimension

Weight

Power

Model	GTWY1-5	GTWY1-6	GTWY1-8	GTWY1-9	GTWY1-10	GTWY1-12
Max. Working Height	6.7m	8.2m	9.8m	11.2m	12.4m	14m
Max. Platform Height	4.7m	6.2m	7.8m	9.2m	10.4m	12m
Loading Capacity	150kg	150kg	150kg	150kg	136kg	120kg
Occupants	1	1	1	1	1	1
Platform Dimension	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m

Model	GTWY1-5	GTWY1-6	GTWY1-8	GTWY1-9	GTWY1-10	GTWY1-12
Overall Height	1.99m	1.99m	1.99m	1.99m	1.99m	2.78m
Overall Width	0.76m	0.76m	0.76m	0.76m	0.76m	0.76m
Overall Length	1.26m	1.26m	1.3m	1.35m	1.4m	1.42m
Outrigger coverage	1.9m x 1.8m	1.9m x 1.8m	1.9m x 1.8m	2.1m x 2m	2.1m x 2m	2.4m*2.2m

Model	GTWY1-5	GTWY1-6	GTWY1-8	GTWY1-9	GTWY1-10	GTWY1-12
AC	330kg	340kg	380kg	410kg	430kg	520kg
DC	380kg	390kg	430kg	460kg	480kg	572kg

Model	GTWY1-5	GTWY1-6	GTWY1-8	GTWY1-9	GTWY1-10	GTWY1-12
AC	380V/220V/110V	380V/220V/110V	380V/220V/110V	380V/220V/110V	380V/220V/110V	380V/220V/110V
AC Motor	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
DC	12V	12V	12V	12V	12V	12V
DC motor	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A

Product Details

Emergency Lowering on Platform Control

It is function of AC model，When the platform suddenly loses power or the equipment fails, the staff can control the platform frame to drop to the ground in time.

Chain Inspection Hole

To inspect whether the chains are of equal extension.

Equipped with Four Mast Brackets

The machine is more stable through the lever action and the connection of each fulcrum.

Rubber Pad on Die-cast Aluminum Foot

It makes die-cast aluminum last longer without damaging the ground.

Leveling Bubble Switch

Equipped with a leveling bubble switch, the detection of whether the four legs are level is more sensitive, ensuring that the legs are leveled, the equipment can be used normally, and the stability of the machine is guaranteed.

Chain Self-leveling System

During the use of the machine, if any chain becomes loose, the machine will adjust itself to ensure that the two chains are stressed simultaneously and evenly.

Truck Loading/Unloading System

There are two forklift pockets near the bottom of the device, ensuring that the device can be loaded and unloaded by one person, reducing transportation and loading and unloading costs.

Standard Forklift Pockets

Facilitates transportation and reduces transportation risks.

Cylinder Can Be Extracted From the Bottom

Easy to maintain and disassemble.
