SPECIFICATIONS

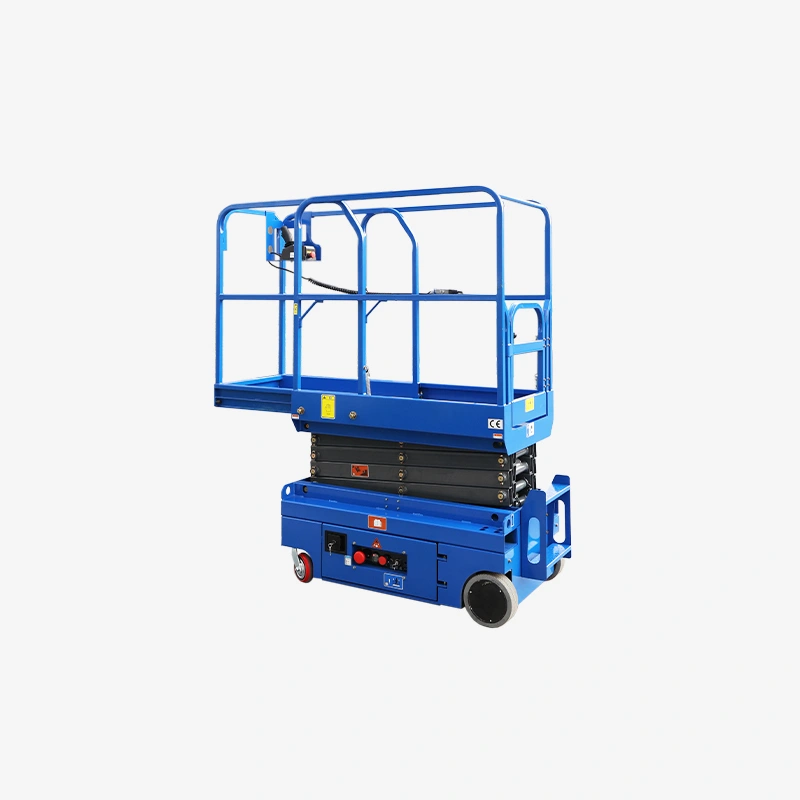

SE Self-Propelled Mini Scissor Lifts
Self-propelled mini scissor lifts are driveable mini scissor lifts suitable for work indoors and outdoors on firm, level surfaces where space is limited. With a compact footprint ideal for work in narrow aisles, these mini scissor lifts are easy to maneuver in tight spaces boasting the versatility to work in construction, maintenance, and installation.
FEATURES
1.Proportional contorls
2.Automatic Pothole protection
3.Driveable at full height
4.Non-marking type
5.Automatic brake system
6.Emergency lowering system
7.Emergency stop button
8.Cylinder holding valve
9.Onboard diagnostic system
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Model |
SE0507 |
SE0607 |
|
Loading Capacity |
240kg |
240kg |
|
Max. Platform Height |
3m |
4m |
|
Occupants |
1 |
1 |
|
Platform Dimension |
1.15×0.6m |
1.15×0.6m |
|
Overall Length |
1.32m |
1.32m |
|
Overall Width |
0.76m |
0.76m |
|
Overall Height |
1.83m |
1.92m |
|
Platform Extension |
0.55m |
0.55m |
|
Extension Load |
100kg |
100kg |
|
Up/Down Speed |
34/20sec |
34/25sec |
|
Turning Radius |
0 |
0 |
|
Maximum Slope |
1.5°/2° |
1.5°/2° |
|
Drive Tyres |
Φ0.23×0.08m |
Φ0.23×0.08m |
|
Gradeability |
25% |
0.25 |
|
Wheel Base |
1.0m |
1.0m |
|
Travel Speed(Stowed) |
4km/h |
4km/h |
|
Travel Speed(Raised) |
0.5km/h |
0.5km/h |
|
Battery |
2×12v/80Ah |
2×12v/100Ah |
|
Lifting Motor |
24v/0.8kw |
24v/1.3kw |
|
Drive Motors |
2×24v/0.3kw |
2×24v/0.4kw |
|
Charger |
24v/12A |
24v/15A |
|
Weight |
630kg |
660kg |
Hyneelift SE0607 is a driveable mini scissor lifts designed for low-level access on level and firm surfaces.It uses indoor and outdoor construction,public works,cleaning events when working at height of 5.9m.
| Model | SE0607 |
| Loading Capacity | 240kg |
| Max. Platform Height | 4m |
| Occupants | 1 |
| Platform Dimension | 1.15×0.6m |
| Overall Length | 1.32m |
| Overall Width | 0.76m |
| Overall Height | 1.92m |
| Platform Extension | 0.55m |
| Extension Load | 100kg |
| Up/Down Speed | 34/25sec |
| Turning Radius | 0 |
| Maximum Slope | 1.5°/2° |
| Drive Tyres | Φ0.23×0.08m |
| Gradeability | 0.25 |
| Wheel Base | 1.0m |
| Travel Speed(Stowed) | 4km/h |
| Travel Speed(Raised) | 0.5km/h |
| Battery | 2×12v/100Ah |
| Lifting Motor | 24v/1.3kw |
| Drive Motors | 2×24v/0.4kw |
| Charger | 24v/15A |
| Weight | 660kg |
